Overview
A simple solution for creating both half- and full-height shower walls, with or without a built-in niche. Thermasheet Wall is lightweight, waterproof and quick to install, providing a straight, stable substrate ready for waterproofing and finishing.
Key points
- Half-height and full-height options
- Available with or without a built-in niche
- Supplied with wall and floor mounting brackets
- 100 mm lightweight, waterproof construction
You'll need
- Wall panel in the selected size
- Wall and floor mounting brackets (supplied)
- Spiral screws (supplied)
- MS polymer sealant
- Circular saw or hand saw
Installation steps
-
1
CUT TO SIZE
Cut the Thermasheet Wall to the required size using a suitable circular saw or hand saw.

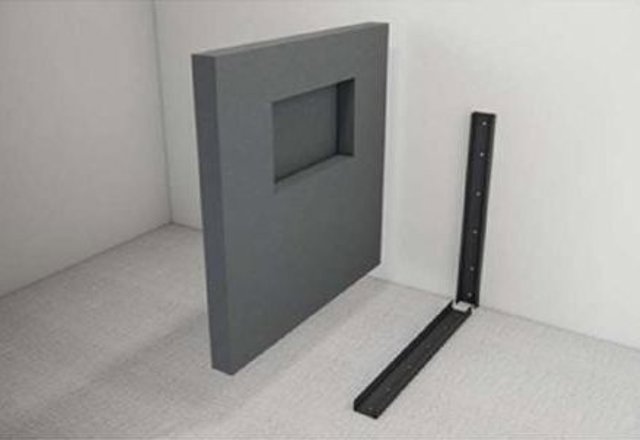

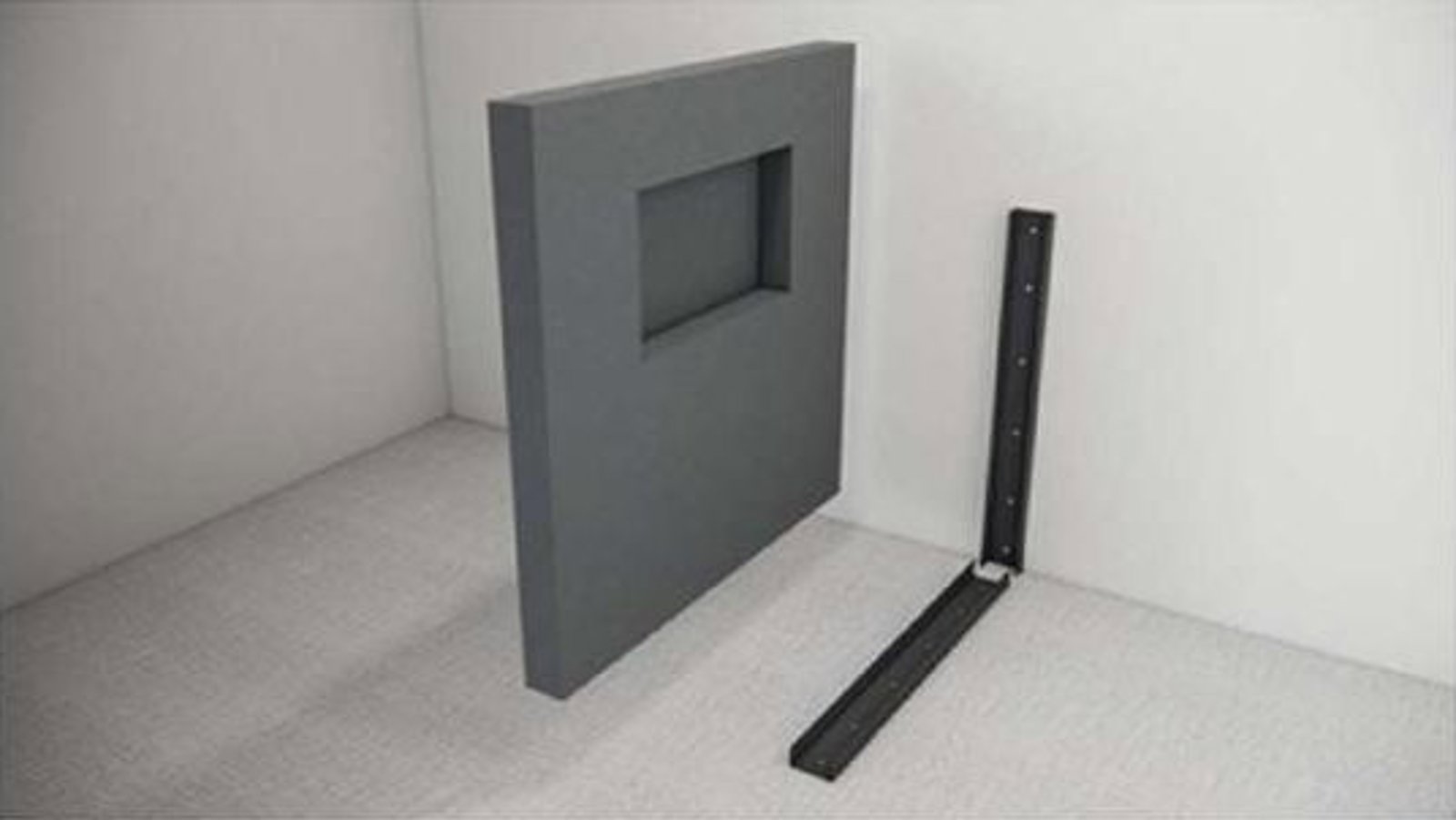

Thermasheet Wall with built-in niche and mounting brackets -
2
SET THE BRACKETS
Fix the wall and floor brackets in the desired position, ensuring they are level and plumb. In framed homes, align the wall bracket with a wall stud.
-
3
SEAL AND POSITION
Apply MS polymer sealant to the base and sides of the brackets, then slide the wall into position. Place any exposed cut edge against the wall or floor.
-
4
SECURE THE WALL
Secure the wall to the supplied brackets with the spiral screws at regular intervals.
